5 years warranty 50w 80w 100w 150w 240w led street light, IP66 waterproof 3000k 6000k city led road lighting
Model Number : EK-LD2301
Produkta Nomo: Strata Luma korpo
Recommend the Watts: : 20w 60w 80w 100w 150w 200w 240w
Akvorezista Indekso: IP66 IP67
Tertrema Indekso : IK08 IK09
Labora temperaturo (℃): -20-60
Surfaca Koloro: Malhela Griza, Hela Griza, Nigra, Agordita ktp
Contain Accessories : Complete finished street lights
Produktaj Trajtoj
- Aluminia korpoestas farita el ADC12-aluminia Die-casting, la surfaco traktita per Spray-pentrado por Malhelpi Korodon kaj Koloron Persisto.
- Granda areo varmodisipilo naĝilo dezajno por rapida teorio en favoro de la konvekcio inter malvarma kaj varma aero, por konservi la bona varmo disipado de lampoj kaj pliigi la lumon tutan vivdaŭron.
- Potenca provizanto por konservi la lampon kompleta kaj unuigita.
- Disegno de ventolado por preventi polvon kaj malhelpi stagnan akvon por atingi la malpezan longvivan tempon.

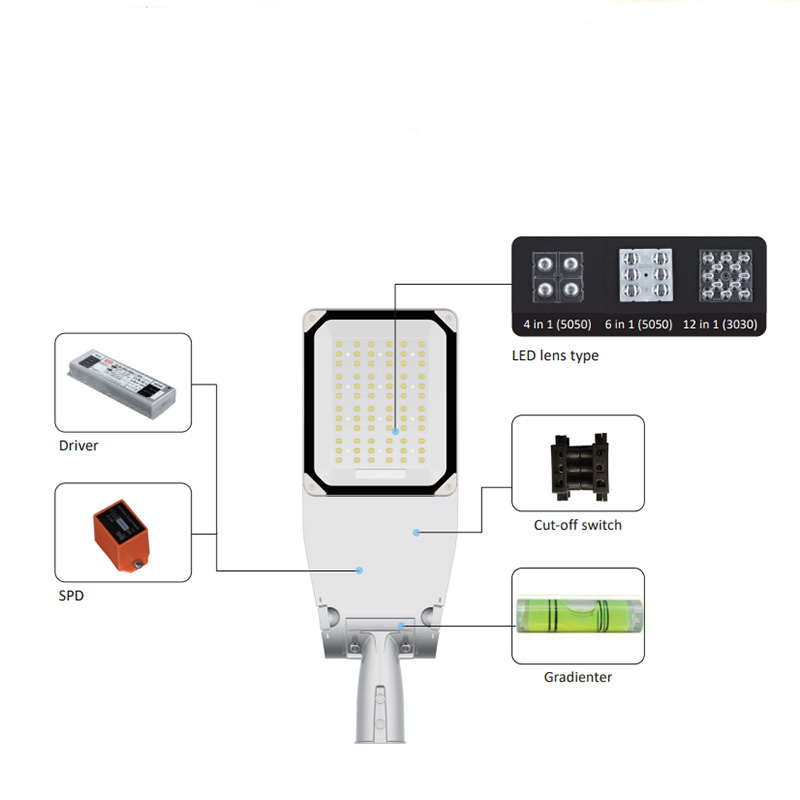

Product Details

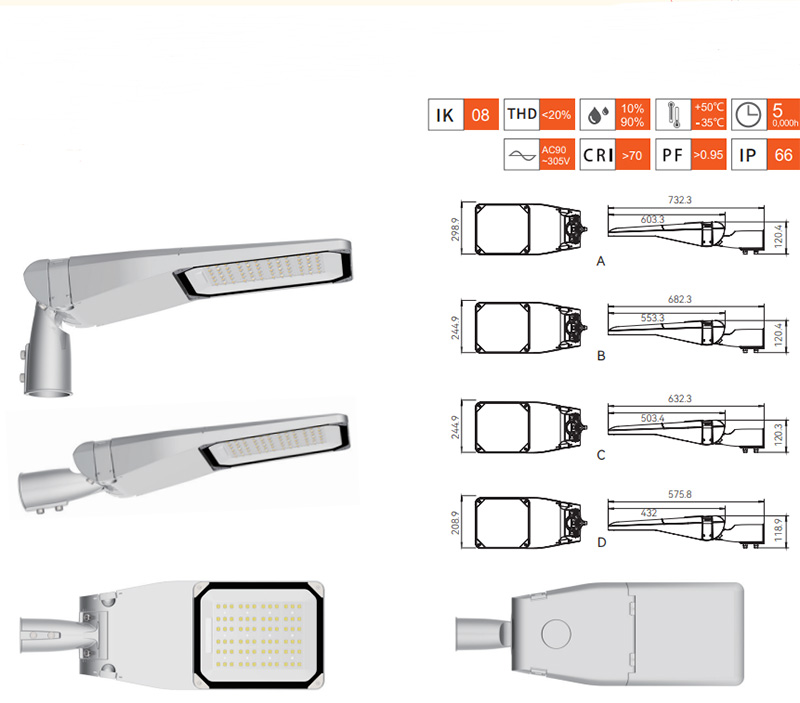

Product Size Chart
Specifo kaj Dimensio
| Model | EK-LD2301A | EK-LD2301B | EK-LD2301C | EK-LD2301D |
| Potenco | 150-240W | 100W-150W | 60W-100W | 20W-60W |
| Average Lumen | around 120 LM/W | around 120 LM/W | around 120 LM/W | around 120 LM/W |
| Chip Brand | LUMILEDS/CREE/SAN'AN | LUMILEDS/CREE/SAN'AN | LUMILEDS/CREE/SAN'AN | LUMILEDS/CREE/SAN'AN |
| Driver Brand | MW/PHILIPS/Inventronics | MW/PHILIPS/Inventronics | MW/PHILIPS/Inventronics | MW/PHILIPS/Inventronics |
| Power Factor | >0.95 | >0.95 | >0.95 | >0.95 |
| Voltage Range | 90V-305V | 90V-305V | 90V-305V | 90V-305V |
| Surge Protection(SPD) | 10KV/20KV | 10KV/20KV | 10KV/20KV | 10KV/20KV |
| Insulation Class | Class I / II | Class I / II | Class I / II | Class I / II |
| CCT. | 3000-6500K | 3000-6500K | 3000-6500K | 3000-6500K |
| CRI. | >70 | >70 | >70 | >70 |
| Working Temperature | (-35℃ to 50℃) | (-35℃ to 50℃) | (-35℃ to 50℃) | (-35℃ to 50℃) |
| IP Klaso | IP66 | IP66 | IP66 | IP66 |
| IK Class | ≥IK08 | ≥IK08 | ≥IK08 | ≥IK08 |
| Lifetime (Hours) | >50000 hours | >50000 hours | >50000 hours | >50000 hours |
| Materialo | Diecasting aluminium | Diecasting aluminium | Diecasting aluminium | Diecasting aluminium |
| Photocell base | With | With | With | With |
| Installation Spigot | 60/50mm | 60/50mm | 60/50mm | 60/50mm |
New Arrival 180W Street Led Manufacturer Outdoor Lighting Waterproof Aluminum LED Street Light
Shenzhen EKI Lighting Industrial Co.,Ltd. estas la fabrikanto de Aluminia Die-Casting LED Light Housing Kun la diversaj de niaj propraj evoluintaj dezajnoj kaj teknologioj.
With Our High-Technology Machine such as, 250T 800T 1000T 1250T Die Casting Machine, CNC Machine, Well Managed production line and surface treatment facility. We becoming specialized in LED Streetlight Housing, LED Floodlight Housing, LED Highbay Heatsink, LED Empty Casting aluminum light housing.
