High power light die cast aluminium 80w 90w 100w 120w 150w 200w 240w 300w led street lights

Model Number : EK-LD15
Produkta Nomo: LED Strata Lumo
Recommend the Watts: : 50w 60w 80w 100w 150w 200w
Waterproof Index : IP66
Tertrema Indekso : IK08 IK09
Labora temperaturo (℃): -20-60
Surface Color : RAL9007(available on request)
Contain Accessories : Complete finished street lights

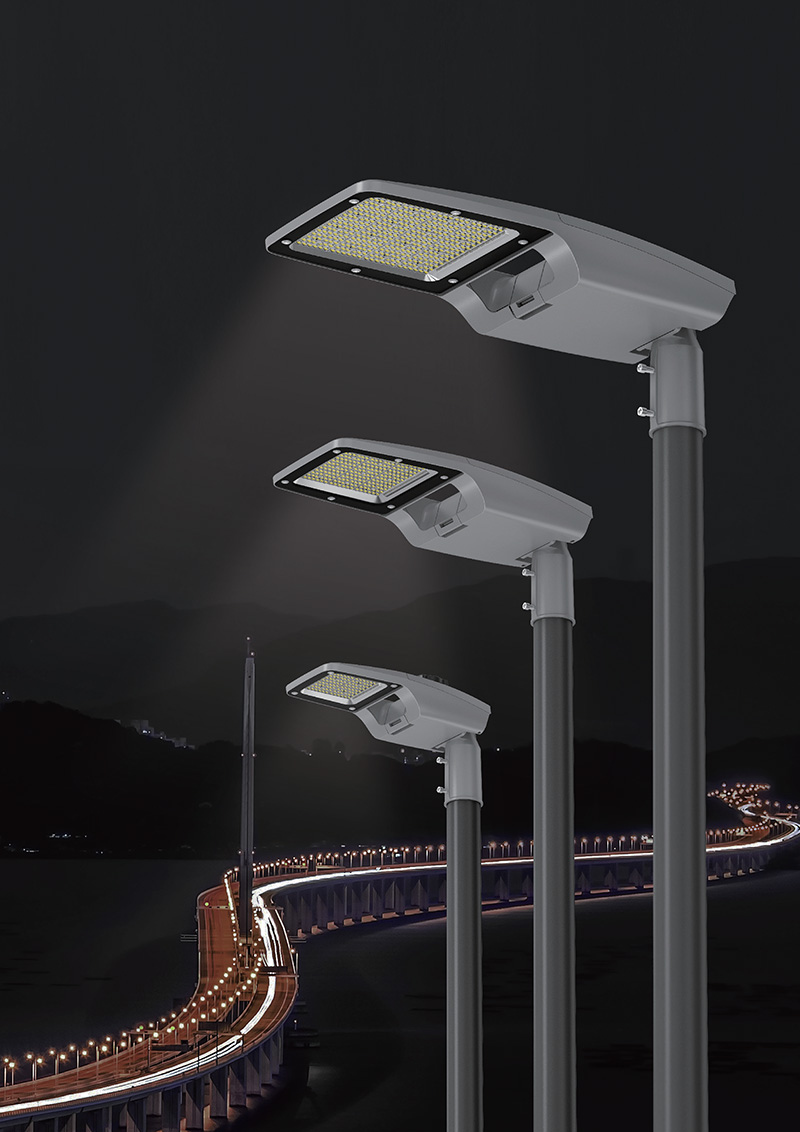

Product Effect Pictures

Produktaj Trajtoj

  1. Smooth appearance and line design

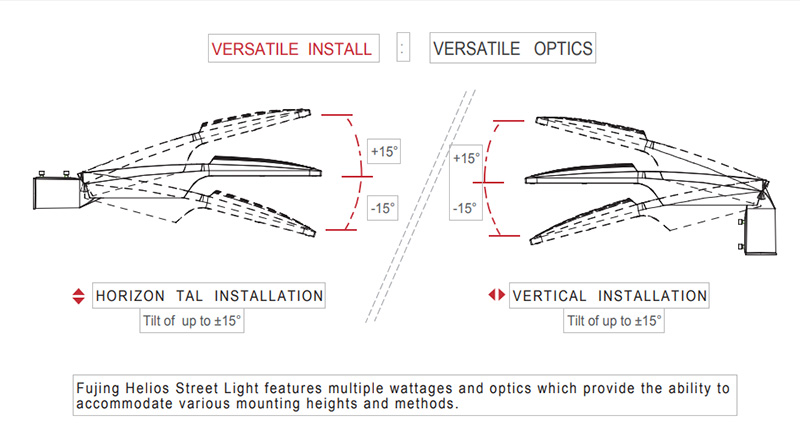

  2. can be installed horizontally and vertically,and the adjustable angle is ± 15 °
  3. The protection grade is IP66 and IK08
  4. Tool-less opening of driver box, ease ofmaintenance
  5. ADC12 high-pressure cast aluminum one-piece shell great help for heat dissipation
  6. High strength tempered glass lampshade withstronger light transmission performance
  7. The hollow design is adopted between the light source and the drive room to improve theair flow rate and heat dissipation capacity

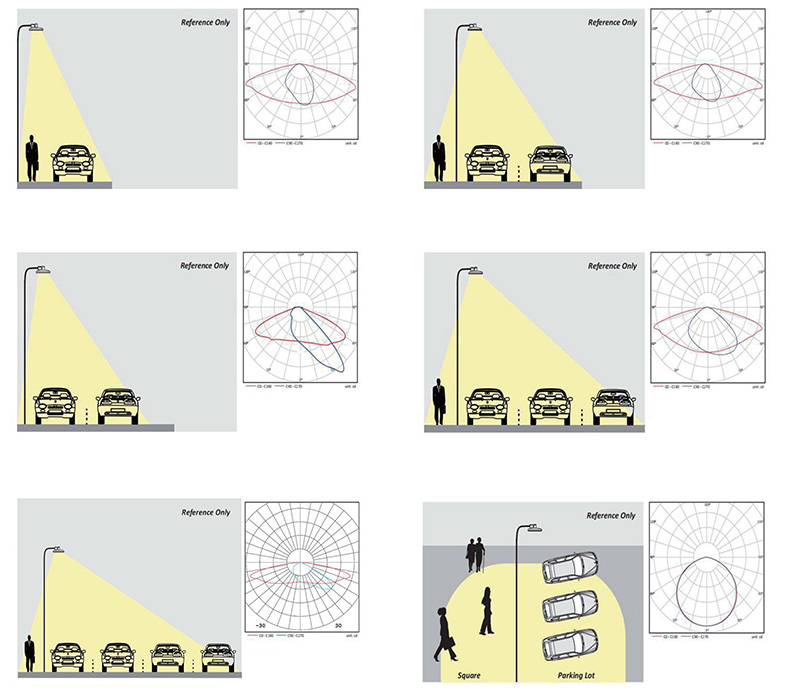

  8. Type Ⅰ/Ⅱ/Ⅲ/Ⅳ/Ⅴlight distribution can meetthe different requirements of road lighting.
  9. Strobo-free stable optical output, power factor0.95 Maintain the stability of the power grid

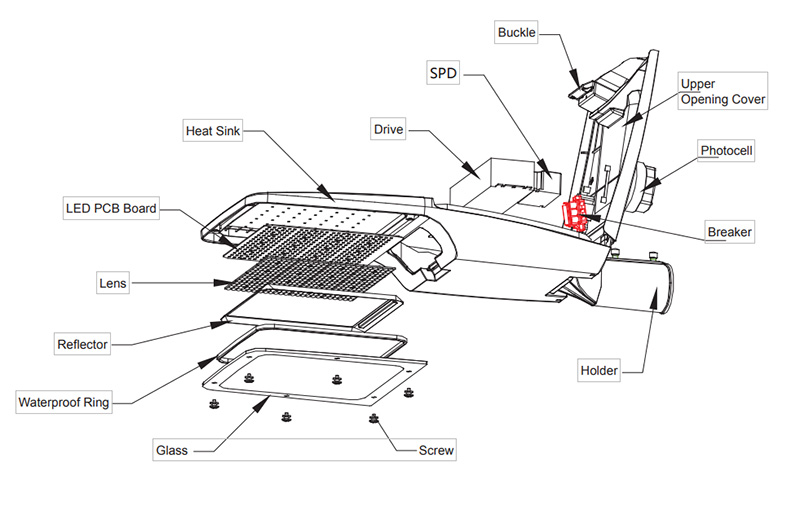

Product Details Picture

Specifo kaj Dimensio

 Produkta Datumfolio
 Item No.EK-LD15-20WEK-LD15-30WEK-LD15-50WEK-LD15-60WEK-LD15-80WEK-LD15-100WEK-LD15-120WEK-LD15-150W
 Potenco20W30W50W60W80W100W120W150W
Lumen Efficiency130lm/w130lm/w130lm/w130lm/w130lm/w130lm/w130lm/w130lm/w
 Lumen2600lm3900lm6500lm7800lm10400lm13000lm15600lm19500lm
 Product Size（mm）498×180×115498×180×115498×180×115629×250×125629×250×125629×250×125629×250×125698×280×115
 Electrical Data
Working VoltageAC100-265V｜50/60Hz
 LEDLumileds / Epistar
 CCT3000K, 4000K, 5000K, 6000K
 CRIRa>70 (Default) / Ra>80
 DriverMeanwell/Philips/Inventronics/OSRAM and so on
 THD<15%
 Power Factor(PF)PF＞0.95
 General Data
 IP-rangigoIP66
 IK RatingIK08
 Holder50mm/60mm(Default)
Korpa MaterialoHigh pressure die-cast aluminum
Housing ColorRAL9007(available on request)
Cover MaterialUV-resistant Polycarbonate
Labormedio-20℃～+50℃, 10%～90%RH
Vivdaŭro L70 je 25℃>50,000 horoj
Munta TipoFlanka eniro aŭ Vertikala stango muntita ±15°
Malheligebla1-10V Malheligado / Tempigilo Malheligado / Dali Malheligado
Protekta KlasoClass Ⅰ(Defauit)/Class Ⅱ
NormojCE, RoHS, ENEC, CB, LM79, LM80, TM-21, IP66, IK08
Havebla laŭpeteSolar Compatible, NEMA socket (3/5/7pins), ZHAGA socket, Short cap, Photocell, Motion sensor, NTC, OLC, DALI Dimming
Akceptebla toleremoVato: ±10%, CCT: ±500K, Lumena efikeco: ±5%
